Collapsible Wire Mesh Containers for Space-Saving Logistics
Foldable steel wire mesh containers that collapse to a fraction of their deployed height—ideal for high-volume logistics, e-commerce returns, rental fleets, and international shipping. Custom sizes and configurations with factory-direct pricing.
Product Overview

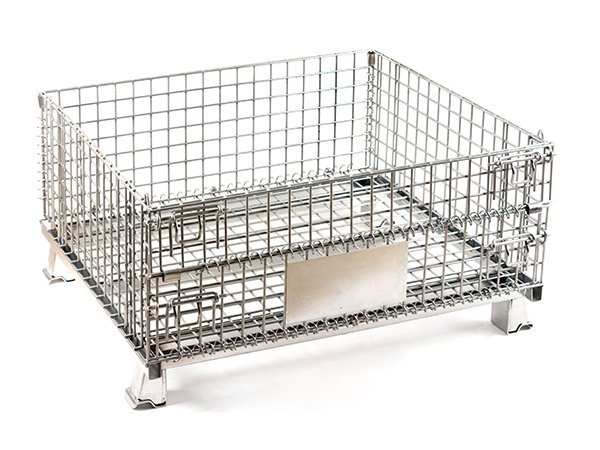

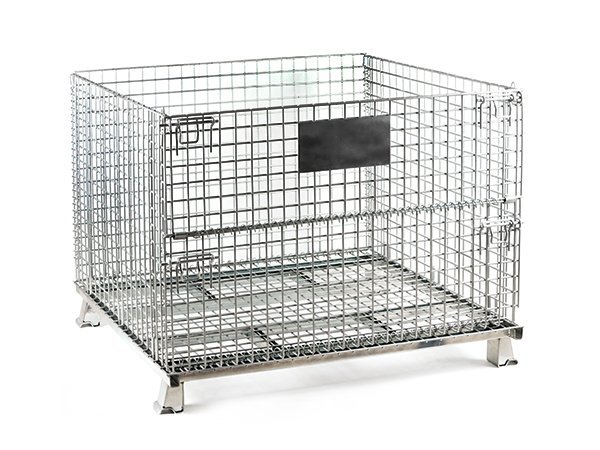

Collapsible wire mesh containers combine the strength and visibility of a fixed steel container with a hinged sidewall design that folds flat when empty. Deployed, they handle heavy loads and stable stacking like any GRSBON container; folded, they collapse to a fraction of their height for return transit and storage.
This makes them the preferred choice for operations where empty-container movement is a recurring cost—e-commerce returns, rental fleets, export packaging, and any high-volume logistics loop where the container must travel back empty as efficiently as it travels out loaded.
Reduced Empty-Return Volume
Sides fold inward to reduce empty-container height, lowering return-freight cost and empty-storage footprint.
Easy Handling
A single operator can fold and deploy a container quickly—no tools required—speeding up returns and warehouse transitions.
Durability

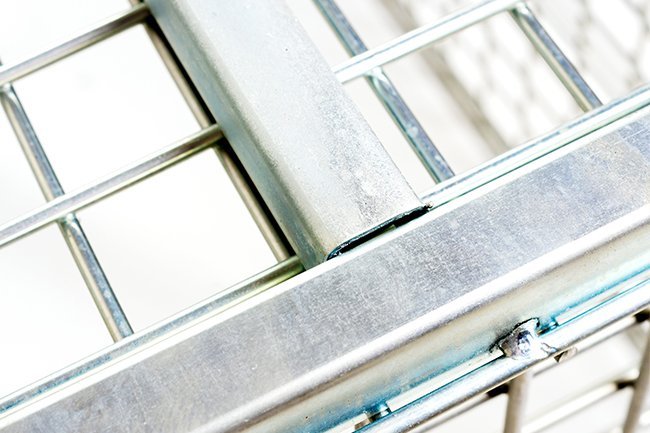

Welded high-strength steel frame with reinforced hinge points maintains rigidity through thousands of load-fold-ship cycles.
Cost Efficiency
Lower return-shipping cost, reduced storage space, and a long reusable service life deliver a low total cost of ownership.
How It Works
A simple, tool-free mechanism delivers full load capacity when deployed and compact storage when folded.
1. Folding Mechanism

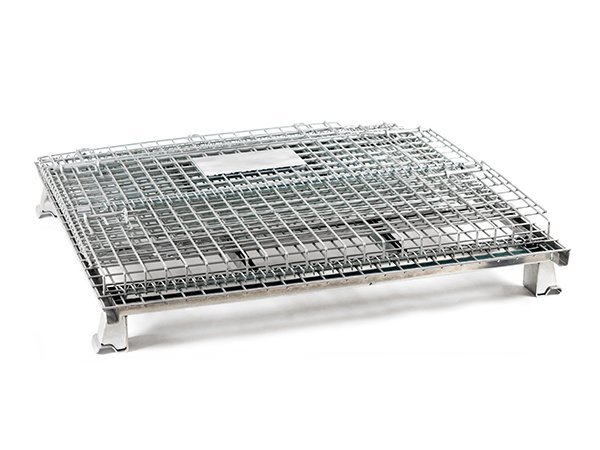

Hinged sidewall panels rotate inward around robust steel hinges. Each side folds flat onto the base in a single motion, collapsing the container to a fraction of its deployed height.
2. Locking System
Spring-loaded latches and locking pins secure the walls upright when deployed and lock the folded stack compact for transit. Optional hasp loops accept padlocks or tamper-evident seals.
3. Deployment Process
Lift a folded stack, release the latch, swing the sidewalls upright until the latch engages, and the container is ready to load—no tools, no fasteners, no assembly time.
Applications
Wherever empty containers must travel back as efficiently as they travel out, collapsible containers reduce return cost and storage footprint.
Customization Options
Every dimension, mesh size, finish, and locking detail is engineered to your return-logistics loop.
Dimensions
Custom deployed length, width, and height to match your pallets, racking, or conveyor system—folded height engineered to your return-pack ratio.
Mesh Size
Wire spacing from fine 25×25mm for small parts to 50×100mm for bulk loads, selected by part size and containment requirements.
Color & Finish
Hot-dipped galvanized, electro-galvanized, or powder-coated in custom colors including blue, red, black, and RAL-matched brand shades.
Locking Mechanisms
Spring latches, bolt locks, hasp-and-padlock loops, and tamper-evident seal points for secure transit and asset tracking.
Reinforced Corners
Optional reinforced corner uprights and stacking feet for high-cycle rental fleets and heavy stacked-return logistics.
Feet & Base Types
Standard stacking feet, forklift-accessible base skids, or caster wheels for mobile shop-floor handling.
Custom Configuration Guide
Every collapsible container is engineered to your return-logistics loop. Share your specifications, drawings and quantities for a confirmed proposal.
| Configuration | Description |
|---|---|
| Construction | Welded carbon-steel frame with collapsible panels |
| Dimensions | Standard-compatible or fully customized |
| Load capacity | Confirmed according to product weight and stacking conditions |
| Collapsed height | Depends on dimensions, hinge design and stacking structure |
| Stacking | Reinforced corners and positive stacking feet available |
| Access | Drop-gate options available |
| Surface treatment | Galvanized or powder coated |
| Packing | Collapsed and bundled according to the export loading plan |
All configurations are confirmed after specification, drawing and quantity review.
